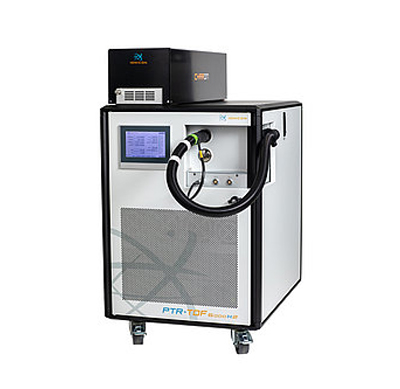

Quantitatively detects organic sub-µm particulate matter as well as particulate ammonium and nitrate at single digit ng/m³ mass concentration levels in real-time.
CHARON PTR-TOFMS is an on-line analytical technique that characterizes the molecular composition of sub-µm organic particles on a chemical composition level at a one-minute time-resolution. The CHARON particle inlet consists of a honeycomb activated charcoal denuder that efficiently adsorbs organic gases and transmits particles, a high-pressure aerodynamic lens system that collimates and extracts sub-µm particles, and a thermo-desorber that evaporates non-refractory organic particulate matter at moderate temperatures of 100-160°C and reduced pressures of a few mbar.
These organics are subsequently analyzed as gas-phase analytes with one of IONICON’s high-resolution PTR-TOFMS instruments. By coupling the CHARON inlet to a PTR-TOFMS, the VOC inlet remains fully operational. An automated valve system allows for scheduled switching between gas- and particle-phase measurements as well as zeroing of the particle inlet.

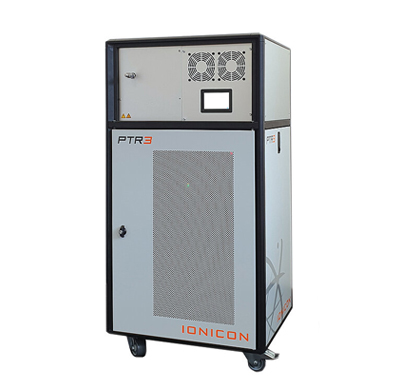

PTR3-TOF 10K mass spectrometer - Trace VOC-ELVOC Analyzer
Ultimate performance PTR-TOFMS
Detection limit: < 0,1 pptv
Sensitivity: > 50000 cps/ppbv
Mass Resolution: > 12000

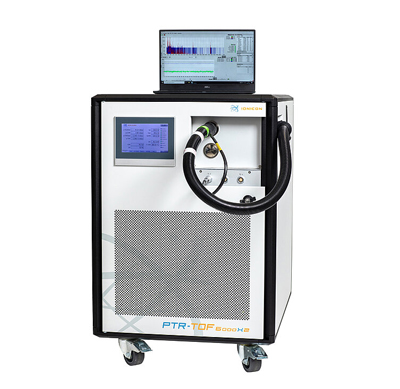

Compact IONICON High-Performance PTR-TOF-MS - Trace VOC Analyzer
Premium performance PTR-TOFMS
Detection limit: < 1 pptv
Sensitivity: > 2000 cps/ppbv
Mass Resolution: > 6000
Compact IONICON High-Resolution PTR-TOF-MS - Trace VOC Analyzer
Our smallest and lightest high-resolution PTR-TOFMS.
Detection limit: < 1 pptv
Sensitivity: > 6000 cps/ppbv
Mass Resolution: > 4000

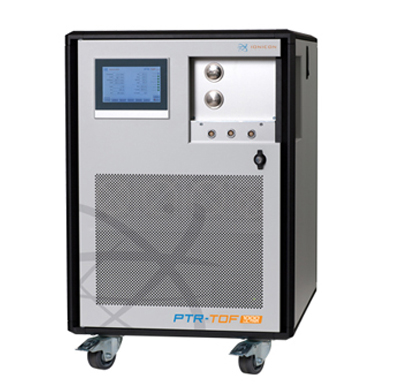

The PTR-TOF 4000 is our most compact, ultra-sensitive & high-resolution IONICON PTR-TOF real-time trace VOC analyzer.
It is our first high-resolution PTR-TOFMS built into the same small and lightweight layout known from our successful PTR-TOF 1000 series.

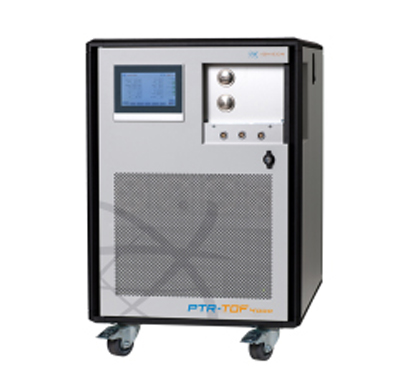

Compact IONICON ultra-sensitive PTR-TOF-MS- Trace VOC Analyzer
The smallest, lightest and most affordable PTR-TOFMS now is ultra-sensitive.
Sensitivity: > 30000 cps/ppbv
Resolution: > 1500
LoD: < 5 pptv
The PTR-TOF 1000 now is ultra-sensitive.
Expect 10x more sensitivity than the PTR-TOF 1000 thanks to the revolutionary ION-BOOSTER funnel technology. If you go for the new X2 performance option featuring an additional hexapole ION-GUIDE, we push the PTR-TOF 1000 ultra beyond all limits, reaching market-leading sensitivity of > 30000 cps/ppbv.

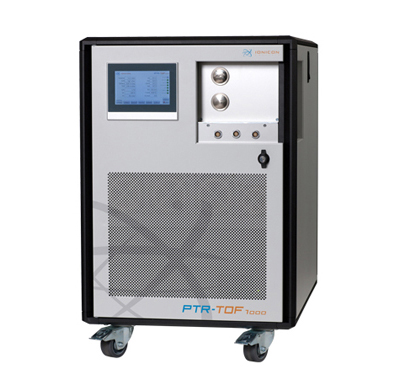

Compact IONICON PTR-TOF-MS - Trace VOC Analyzer
The smallest, lightest and most affordable time of flight based PTR-MS.
Sensitivity: > 200 cps/ppbv
Resolution: > 1500
LoD: < 10 pptv
The PTR-TOF 1000 is an IONICON PTR-TOFMS instrument with dimensions, weight and price usually restricted to high-end quadrupole PTR-MS, but having all the advantages only powerful time of flight based solutions offer:
