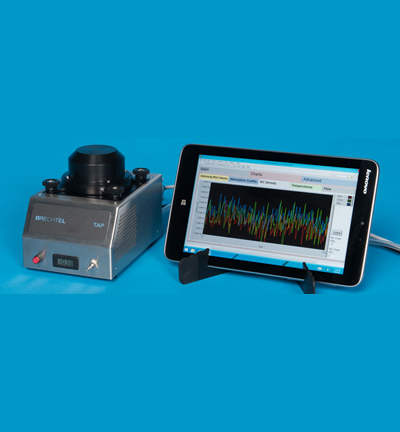

Tricolor Absorption Photometer (TAP)-MODEL : 2901

Perform real-time light absorption and black carbon measurements using light transmission through a filter with the Tricolor Absorption Photometer (TAP). Based on a decades-proven design that is simple to use and maintain, the TAP measures light absorption at three wavelengths by particles deposited on a filter. By assuming a mass extinction efficiency, the ambient mass loadings of black carbon can also be determined. The TAP has been deployed at Global Aerosol Watch sites around the world for many years, demonstrating good agreement with other simultaneously deployed filter-based light absorption methods.


Eight sample channels and two reference channels

Easy to operate and install (external pump required)

Multiple-wavelength light source (Red, Green and Blue)

Data logging software included

Read More

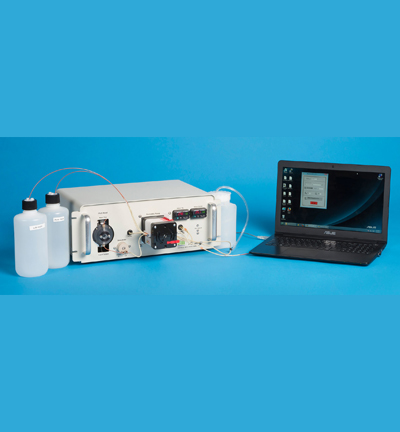

Particle into Liquid Sampler (PILS) Model : 4001

The PILS is one of the simplest methods available to acquire samples for aerosol chemistry applications. It can be easily integrated with the analytical method of your choice. Ion chromatography systems and total organic analyzers are routinely used with the PILS. These analytical methods allow on-line analyses of aerosol chemistry for major water soluble ions and organic species.


PM1 or PM2.5 bulk aerosol sampling

Fully characterized and field tested

Vial collection with multiple vial sizes using optional Auto-collector

Software to record PILS temperatures and control optional auto-collector

Rack mount tabs fits standard 19 inch racks

Read More

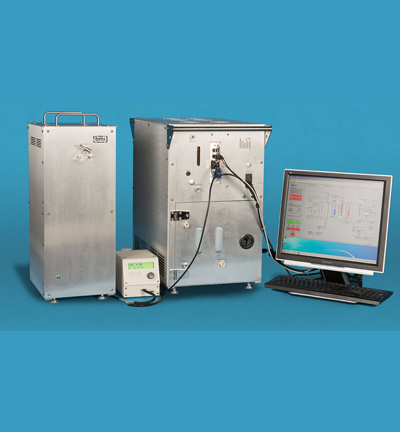

Humidified Tandem Differential Mobility Analyzer-Model : 3100

Most particles in the atmosphere take up water when exposed to increasing relative humidity- this often explains the poor visibility during the early morning hours when the relative humidity is high and particles have swollen in size and more effectively scatter solar radiation. When we inhale particles they also grow into water droplets, how large they grow determines where they deposit in our respiratory systems. Brechtel developed the first commercial version of the Humidified Tandem Differential Mobility Analyzer (HTDMA) so researchers who wanted to explore the complexities of particle water uptake no longer had to build their own instruments, instead they could rely on our 20 plus years of experience with HTDMAs to invest in a solution that would let them focus on their science and not the tool.


Fully automated and field tested

Comprehensive, easy-to-use software with experiment scheduler module

Large particle performance: up to 2 microns!

Rapid RH and particle size changes

Fast response barrier-free diffusion-based humidifier

Integrated and automated aerosol generation system (optional)

Rack mount kit (optional)

Read More

Aerosol Counting, Composition, Extinction and Sizing System (ACCESS) Model : 9400

The ACCESS suite of instruments is an ideal measurement solution for applications like Unmanned Aerial Vehicles (UAV) requiring small size, portability, low weight, and low power usage. ACCESS includes four miniaturized measurement modules that can fit on a single UAV: a small Mixing Condensation Particle Counter (MCPC) for real-time total number concentration observations, an Optical Particle Counter (OPC) for number size distribution measurements between 0.1 and 10 μm, a Single-channel Tricolor Absorption Photometer (S-TAP) for light absorption and black carbon measurements, and an eight-channel filter sampler for off-line chemical composition measurements.


Rapid observations of ambient total aerosol number concentration

Time resolved filter sampling for aerosol composition

Size resolved optical number concentration

Aerosol absorption coefficient at 3 wavelengths and black carbon concentration
